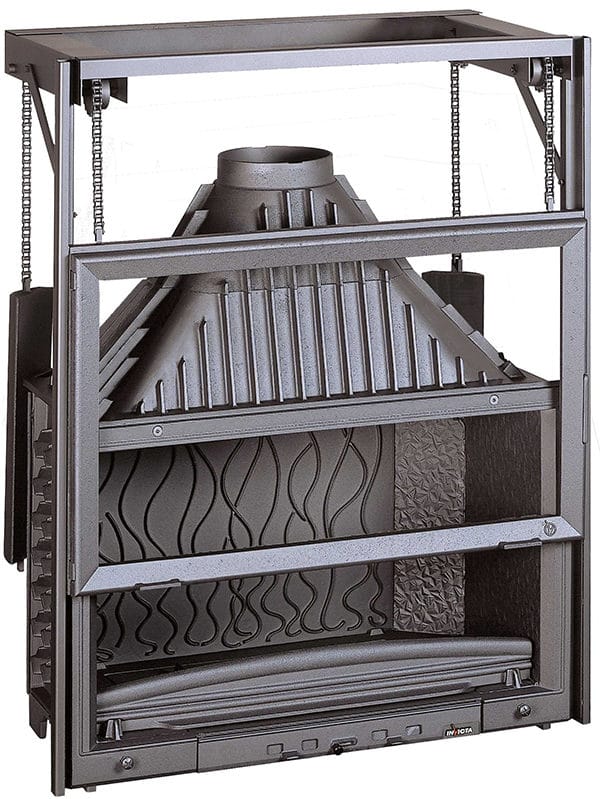

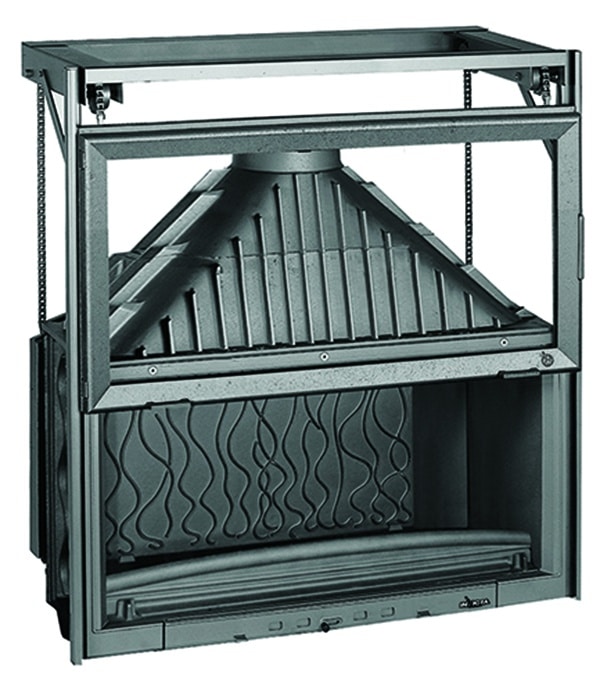

1100 GV Inset Stove Guillotine Door

Reference : P681144
This large hearth offers a stunning view of its hypnotizing flames. It can be enjoyed in two ways: as a magnificent panorama with the hearth open, or more subtle with the hearth closed.
Request a quote
Our labels
  • logo Ecolabel A
Why this product?

This large hearth offers a stunning view of its hypnotizing flames. It can be enjoyed in two ways: as a magnificent panorama with the hearth open, or more subtle with the hearth closed.

Clean glass

The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

Double opening door

The door opens and closes sideways for the best energy performance of your closed hearth. It also slides up and down using a system of counterweights. This sliding door allows you to enjoy a traditional fire on occasion.

Great show

This unit can hold large logs and offers an excellent view of the flames.

Origine France Garantie (Made in France Guarantee)

The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

Slow burning mode
Features
Optimal heat output (kW)
18
Heat output adjustment (kW)
12 - 27
Heating volume (m³)
235 - 535
Heating surface (m²)
95 - 215
Useful efficiency (%)
70
CO (%)
0,26
CO (mg/Nm³)
3250
Dust (mg/Nm³)
106 mg/Nm³
Energy Efficiency Index (EEI)
92
Flue gas mass flow (g/s)
19,2
Flue gas temperature (°C)
380
Combustible
50 cm logs
Maximum log length (horizontally)
94 cm
Loading
Front
Flue exit
Top
Flue diameter (mm)
230 mm
Dimensions - H * W * D (mm)
1158 x 1100 x 519,5
Weight (kg)
265 kg
Catégorie de largeur
1100
Material
Cast Iron
Finish
Anthracite
Standard
EN 13229
