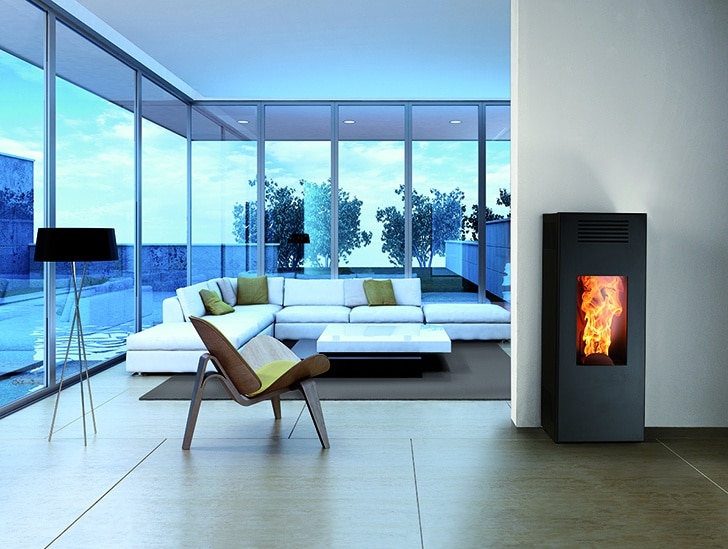

Rubia IP9 Pellet Stove

All the practical advantages of a pellet stove are hidden behind the Rubia’s minimalistic design and elegant appearance.

Reference: P840104
  • logo Flamme Verte 7 étoiles
  • logo Eco Design
  • logo Ecolabel A+
  • Picto e
  • Picto télécommande option C02260
  • Picto wifi option avec kit C02250
Why this product?
1-year extended warranty

For pellet appliances, the 1-year warranty extension is conditional on the is conditional on the product being registered online.

Can be connected with optional kit ref. P697010

Possibility of connecting the fresh air supply directly to the stove from outside or from a crawl space.

Chrono-thermostat programming

Using the chronothermostat, you can:
* define 3 operating temperatures: comfort, normal, economic,
* set the times for the unit to turn on and off,
* program the wood-burning stove for 24 hours in units of a 1/2 hour, choosing to have the unit turn off or to select one of three pre-defined temperatures,
* set a different schedule for every day of the week.

Combustion Control Kit (CCK)

The KCC is used to adapt the unit to the specifications for wood pellets, such as: the type of installation, altitude, the type of soiling caused by the burner and heat exchanger, to ensure more efficient and better performance over time and to reduce maintenance.

Optional external thermostat control (not included)

Air distribution connection lines are available as an option. Reference P690080: kit 2 connection lines & screws.

Optional remote control

The portable remote allows you to control the wood pellet stove remotely: turn the unit on and off, set the room temperature or operating power, and access menus.

Optional WiFi kit

Possibility of connecting an optional Wifi kit to the pellet stove to control it remotely, from a mobile device.

Regulate power or room temperature

*Adjust operating power: 10 pre-programmed power settings managed automatically.
*Adjust the preset temperature: you choose the desired ambiant temperature in the room. It is measured using a wire probe. The wood pellet stove adjusts its power to reach and maintain the requested value.

Standby function

Standby is a backup feature of the device. The unit turns off if the room temperature is 3°C higher than the temperature set for over 3 minutes. The unit turns on again when the room temperature drops 1°C below the temperature set.

Ventilation can be disabled

With the SMART ventilation program activated, the fan only runs when necessary. This makes the device quieter and therefore more comfortable to use.

Ventilator for hot air output

A tangential forced convection ventilator is used. It distributes the hot air inside the room.

Features
Optimal heat output (kW)
9 kW
Heat output adjustment (kW)
3,8 - 9
Heating volume (m³)
180 - 260
Heating surface (m²)
72 - 104
Flamme verte (environmental label)
7 stars
Useful efficiency (%)
88 - 92,2
Seasonal efficiency - ETAS
84
CO (%)
0,0089 - 0,0185
CO (mg/Nm³)
112 - 231
Dust (mg/Nm³)
15 - 19
GOC (mg/Nm³)
2 - 3
NOx (mg/Nm³)
135 - 150
Energy Efficiency Index (EEI)
123
Flue gas mass flow (g/s)
3,4 - 6,2
Flue gas temperature (°C)
110 - 205
Natural wood pellets
length: 30 mm diameter: 6 mm
Hopper capacity (kg)
17 kg
Consumption (kg/h)
0,85 - 2,10
Minimum autonomy (H)
8 hours
Maximum autonomy (H)
20 hours
Loading
Top
Flue exit
Back
Flue diameter (mm)
80 mm
Flue exit height from floor (mm)
235
Air inlet (mm)
40 x 40 mm
Heating body
IP (standard ventilation can be disabled)
Tension (V) / frequency (Hertz)
230 V / 50 Hertz
Electric power (W)
350 W
Dimensions - H * W * D (mm)
1090 x 420 x 475
Weight (kg)
106 kg
Design
Contemporain
Material
Steel
Finish
Painted steel cladding
Color(s)
Black
Standard
EN 14785-BlmSchV compliant
Warranty
2 years + extension 1 year*
