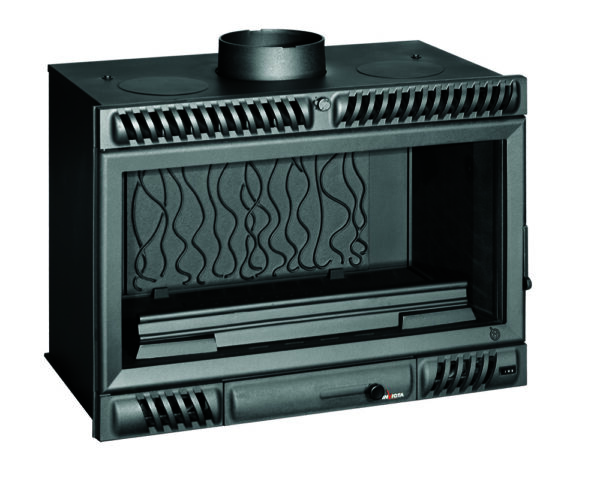

800 Compact Turbo Cassette Stove

This large-sized insert brings comfort and enjoyment into your home. You’ll enjoy high energy performance when you install this insert in your open fireplace.

Reference: P902840
  • logo Ecolabel A
  • logo Eco Design
  • logo Flamme Verte 7 étoiles
  • v
Why this product?
Clean glass

The clean glass system slows deposit buildup on the glass. An air supply above the glass creates a protective curtain. The preheated air is propelled along the glass. It triggers combustion of gas and volatile materials, thereby protecting the glass against smoke and soot deposits.

Hot air distribution through forced ventilation

The unit has 2 axial fans with 2 speeds controlled manually using a switch. The fans turn on automatically when the temperature reaches 50°C.

Intermittent and 3 hour extended burning

The unit can alternate between intermittent and extended burning mode. Intermittent mode requires frequent addition of new wood. It is particularly high-performing and respectful of the environment. Extended burning mode, with a low flame, enables 3 hours of operation without intervention.

Optional sleeves
Origine France Garantie (Made in France Guarantee)

The Origine France Garantie is the only certification that certifies a product was manufactured in France. This labeling is validated by an independent organization, after an audit. (Bureau Veritas No.7208672). OFG products are manufactured in France at Invicta Group manufacturing sites.

Post-combustion system

Injection of pre-heated air into the combustion chamber The supplementary air intake in the back enables hydrocarbons to be destroyed at a high temperature. Complete combustion reduces pollution.

Features
Optimal heat output (kW)
12 kW
Heat output adjustment (kW)
8 to 18 kW
Heating volume (m³)
160 - 360 m³
Heating surface (m²)
65 - 145 m²
Flamme verte (environmental label)
7 stars
Useful efficiency (%)
76 %
Seasonal efficiency (%)
65
CO (%)
0,12 %
CO (mg/Nm³)
1500
Dust (mg/Nm³)
30 mg/Nm³
GOC (mg/Nm³)
120
NOx (mg/Nm³)
200
Energy Efficiency Index (EEI)
100
Flue gas mass flow (g/s)
10,4
Flue gas temperature (°C)
310
Combustible
Logs 25, Logs 33, Logs 50 cm
Maximum log length (horizontally)
64 cm
Loading
Front
Flue exit
Top
Flue diameter (mm)
200 mm
Dimensions - H * W * D (mm)
638 x 795 x 463
Weight (kg)
146 kg
Design
Traditional
Category of the feeder (opening, inserts)
800
Material
Cast Iron + Steel
Finish
Anthracite
Standard
EN 13229
Warranty
5 years
Option (accessories)
Hot air outlet sleeves
